NU77

NU77

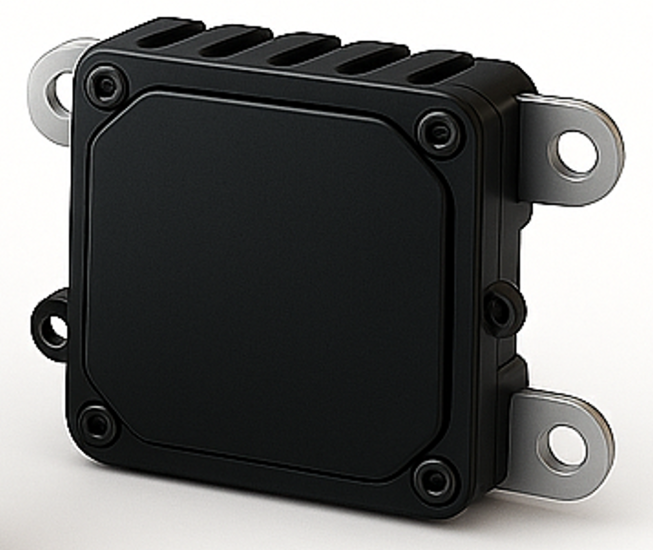

  • High-performance 77 GHz radar in credit card format.
  • Dense point cloud detection at long distance.
  • Wide field of view for comprehensive surveillance.
  • High-resolution distance and speed measurement.
  • Compact format and low power consumption.
  • Ruggedized housing for use in all weather and environments
  • Autonomous mobility, road safety, defence and perimeter detection.

OPERATIONAL CHARACTERISTICS :

DIMENSIONS: 70 x 60 x 25mm
WEIGHT: 100g
INTERFACE: Ethernet
FRAME RATE: 20Hz
POWER CONSUMPTION: 5W
SUPPLY: 12V
IP RATING: IP67
OPERATING TEMPERATURE: -40°C / +85°C

PERFORMANCES :

INSTRUMENTED DISTANCE: 0.1 to 250m
DETECTION DISTANCE (At 0°): 220m (1 vehicle)
SEPARATION: < 0.2m
ACCURACY: ± 0.02m
MAXIMUM SPEED: ± 350km/h
SEPARATION: <0.25m/s
ACCURACY: ± 0.13m/s
NUMBER OF SIMULTANEOUS TARGETS: MAX 600
FREQUENCY: 76-77GHz
FIELD OF VIEW: Az: ± 60° El: ± 20°

Keywords

  • Radar
  • Credit Card Format
  • Compact
  • Low-power Consumption
  • All Weather

About

NUSENSE

NUsense is a French company comprised of recognized experts in millimeter wave radar.

Founded in 2024, our areas of expertise cover the entire radar chain: Radar Systems, RF Design, Signal Processing and Radar Measurements.

Our ambition is to democratize the use of radar: our compact and low-power radar products addressa wide range of applications.

One need, one solution. 'Let's mmWave together'
