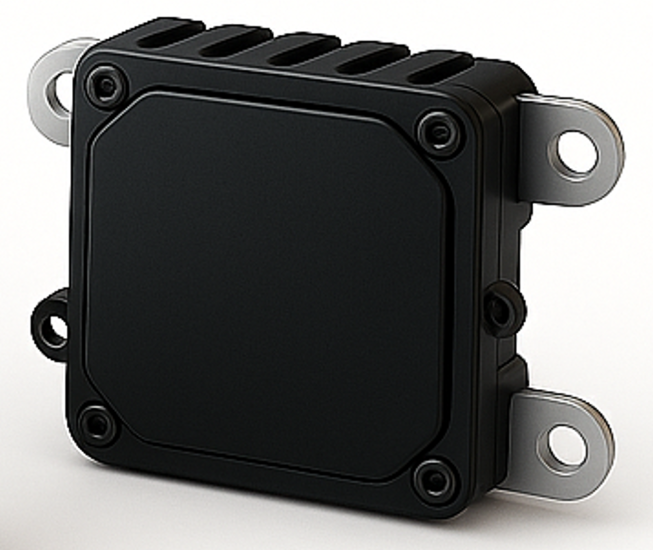

NU77 IMAGING RADAR

NU77 IMAGING RADAR

  • High-performance 77 GHz radar designed for long-range detection.
  • Dense point cloud detection at long distance.
  • Wide field of view for comprehensive surveillance.
  • High resolution distance and speed measurement.
  • Extended range up to 500 m.
  • Ruggedized housing for use in all weather and environments Autonomous mobility, road safety,
defence and perimeter detection.

OPERATIONAL CHARACTERISTICS :

DIMENSIONS: 120 x120 x 40 mm
WEIGHT: 550 g
INTERFACE: Ethernet
FRAME RATE: 20 Hz
POWER CONSUMPTION: 20 W
POWER SUPPLY: 12 V
IP RATING: IP67
OPERATING TEMPERATURE: -40°C / +85°C

PERFORMANCE :

INSTRUMENTED DISTANCE: 0.5 to 500 m
DETECTION DISTANCE (At 0°): 500 m (1 vehicle)
SEPARATION: < 0.4 m ACCURACY: ± 0.04 m
MAXIMUM SPEED: ± 350 km/h
SEPARATION: < 0.25 m/s
ACCURACY: ± 0.13 m/s
NUMBER OF SIMULTANEOUS TARGETS: MAX 2655
FREQUENCY: 76-77 GHz FIELD OF VIEW: Az: ± 60° El: ± 20°

Keywords

  • Radar
  • Imaging
  • High Resolution
  • Extended Range
  • All Weather

About

NUsense

NUsense is a French company comprised of recognized experts in millimeter wave radar.

Founded in 2024, our areas of expertise cover the entire radar chain: Radar Systems, RF Design, Signal Processing and Radar Measurements.

Our ambition is to democratize the use of radar: our compact and low-power radar products addressa wide range of applications.

One need, one solution. 'Let's mmWave together'
