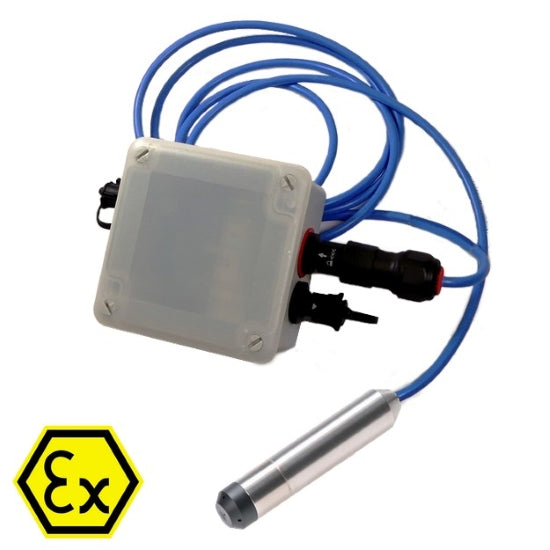

Lev’O+ Liquid Level solution – LoRaWAN

The LEV’O+ Liquid Level solution is used to determine the level of a tank, cistern or cavity, to accurately monitor variations in the level of the liquid and does not require knowledge of its geometric dimensions. By measuring the relative pressure of the liquid (water, fuel, oil, liquid fertiliser, etc.), LEV’O+ transmits the data over a public or private LoRaWAN® radio network, thus enabling the application to establish the relationship between the analog value and the height of the liquid.

Characteristics

Easy to deploy and use
Plug & play with TORAN’O device (not supplied)
Probe power supplied by TORAN’O for the duration of the measurement
Remote level measurement probe on 5m cable:
– Pressure range: 0…0.3 bar
– Accuracy: +/- 0.8% of full scale
– Resolution: 0.1% of full scale
– Relative sensor 4-20mA
– Suitable for fitting in 1-inch pipe

ATEX declaration CE FCC IP67 RED 2014/53/EU RoHS - 2002/95/CE
